Complaint – Pulse

Represents a customer complaint associated with a Product and a traceable finished Lot.

For example, a customer reporting damaged packaging, incorrect fill weight, or a foreign object in a Product can be recorded as a Complaint.

A Complaint records what was reported, when the issue was identified and received, and how the investigation was resolved.

The Complaint object

{
  "code": "CMP-2026-0413",
  "customer": "CUS001",
  "lot": "FG-260810-113",
  "product": "PRD001",
  "reason": "CMP-FOREIGN-BODY",
  "detail": "Blue plastic fragment about 4mm in the cup",
  "quantity": 6,
  "unit": "pcs",
  "severity": 4,
  "noticedAt": "2026-08-19T12:00:00+02:00",
  "heardAt": "2026-08-24T09:12:00+02:00",
  "outcome": "upheld",
  "settlement": "credit",
  "cost": 184.5,
  "causeFound": "CMP-FOREIGN-BODY",
  "settledAt": "2026-09-02T14:00:00+02:00"
}

Fields

Field	Type	Description	Example
`code`	string	Unique business code used to identify the Complaint.	`"CMP-2026-0413"`
`customer`	string	Business code of the Customer associated with the Complaint.	`"CUS001"`
`lot`	string	Business code of the affected finished Lot. The Lot must have been produced by a Run.	`"FG-260810-113"`
`product`	string	Business code of the affected Product.	`"PRD001"`
`reason`	string	Business code of the Reason describing what the customer reported.	`"CMP-FOREIGN-BODY"`
`detail`	string or null	Optional free-text description of the reported issue.	`"Blue plastic fragment about 4mm in the cup"`
`quantity`	number or null	Optional affected quantity.	`6`
`unit`	string or null	Unit in which the affected quantity is expressed.	`"pcs"`
`severity`	integer or null	Optional severity from `1` to `5`.	`4`
`noticedAt`	string	Date and time when the customer noticed the issue, in ISO 8601 format.	`"2026-08-19T12:00:00+02:00"`
`heardAt`	string	Date and time when the complaint reached the producer, in ISO 8601 format.	`"2026-08-24T09:12:00+02:00"`
`outcome`	string or null	Investigation outcome. Supported values are `upheld`, `rejected`, and `goodwill`.	`"upheld"`
`settlement`	string or null	Commercial resolution. Supported values are `credit`, `replacement`, `collection`, and `none`.	`"credit"`
`cost`	number or null	Optional cost associated with resolving the Complaint.	`184.5`
`causeFound`	string or null	Optional business code of the Reason established by the investigation.	`"CMP-FOREIGN-BODY"`
`settledAt`	string or null	Date and time when the Complaint was settled, or `null` while it remains open.	`"2026-09-02T14:00:00+02:00"`

Important

code must be unique. Two Complaints cannot use the same code.

customer, lot, product, and reason must reference existing records.

The referenced lot must be a finished Lot produced by a Run.

When causeFound is provided, it must reference an existing Reason.

Both noticedAt and heardAt are required.

Reported reason and cause found

reason and causeFound describe two different facts.

reason records what the customer reported.

causeFound records what the investigation later determined.

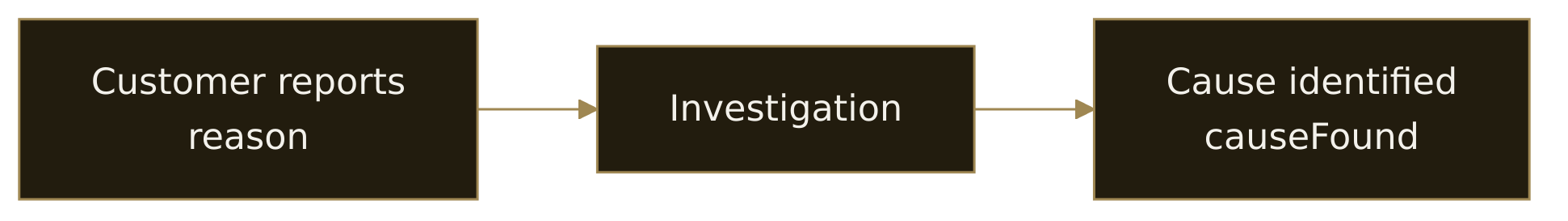

Diagram 1

For example, the customer may report a sealing problem while the investigation later identifies a different underlying cause.

Keeping the two fields separate preserves the distinction between the reported symptom and the cause established during investigation.

Complaint timing and lifecycle

A Complaint records two required timestamps:

noticedAt — when the customer noticed the issue;
heardAt — when the producer learned about it.

The difference between them preserves the delay between the customer's observation and receipt of the Complaint.

A Complaint can be created before the investigation is complete:

{
  "code": "CMP-2026-0413",
  "customer": "CUS001",
  "lot": "FG-260810-113",
  "product": "PRD001",
  "reason": "CMP-FOREIGN-BODY",
  "noticedAt": "2026-08-19T12:00:00+02:00",
  "heardAt": "2026-08-24T09:12:00+02:00"
}

While settledAt is null, the Complaint remains open.

When the investigation and commercial handling are complete, settlement details can be added:

{
  "outcome": "upheld",
  "settlement": "credit",
  "cost": 184.5,
  "causeFound": "CMP-FOREIGN-BODY",
  "settledAt": "2026-09-02T14:00:00+02:00"
}

settledAt = null    → open
settledAt supplied  → settled

Outcome

Supported outcome values are:

Outcome	Meaning
`upheld`	The Complaint was substantiated.
`rejected`	The Complaint was not substantiated.
`goodwill`	The Complaint was resolved as a goodwill gesture without accepting liability.

outcome is optional and can remain null while the investigation is undecided.

Settlement

Supported settlement values are:

Settlement	Meaning
`credit`	The Customer received a credit.
`replacement`	The affected Product was replaced.
`collection`	The affected Product was collected.
`none`	No commercial settlement was made.

settlement is optional and can remain null while the Complaint is unsettled.

Traceability

The finished Lot connects the Complaint to its production context.

Pulse resolves the Run that produced the Lot and the Production line associated with that Run.

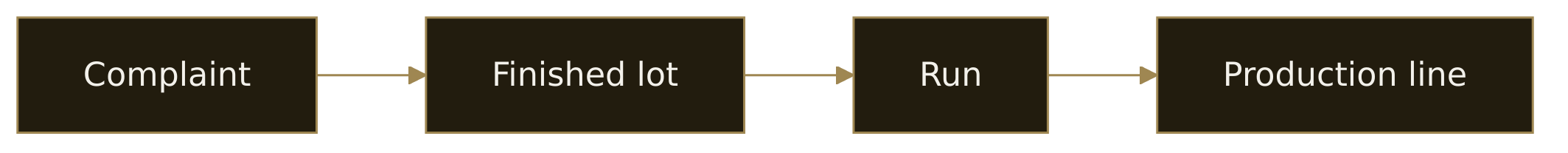

Diagram 2

This preserves production traceability without requiring the Complaint payload to submit the Run or Production line directly.

Reference protection

A Customer, Product, Lot, or Reason referenced by an existing Complaint cannot be deleted while the Complaint still references it.

This also applies to the optional Reason referenced by causeFound.

API resource

Resource	Base path
`Complaint`	`/manufacturing/food-beverage/v1/complaints`

API methods

Create a complaint

POST /manufacturing/food-beverage/v1/complaints/insert

Creates a customer Complaint.

Request

POST /manufacturing/food-beverage/v1/complaints/insert
Content-Type: application/json

{
  "code": "CMP-2026-0413",
  "customer": "CUS001",
  "lot": "FG-260810-113",
  "product": "PRD001",
  "reason": "CMP-FOREIGN-BODY",
  "detail": "Blue plastic fragment about 4mm in the cup",
  "quantity": 6,
  "unit": "pcs",
  "severity": 4,
  "noticedAt": "2026-08-19T12:00:00+02:00",
  "heardAt": "2026-08-24T09:12:00+02:00",
  "outcome": "upheld",
  "settlement": "credit",
  "cost": 184.5,
  "causeFound": "CMP-FOREIGN-BODY",
  "settledAt": "2026-09-02T14:00:00+02:00"
}

Parameters

Parameter	Type	Required	Description
`code`	string	yes	Unique business code of the Complaint.
`customer`	string	yes	Business code of the Customer.
`lot`	string	yes	Business code of the affected finished Lot.
`product`	string	yes	Business code of the affected Product.
`reason`	string	yes	Business code describing what the Customer reported.
`detail`	string or null	no	Additional free-text description.
`quantity`	number or null	no	Affected quantity.
`unit`	string or null	no	Unit of the affected quantity.
`severity`	integer or null	no	Severity from `1` to `5`.
`noticedAt`	string	yes	Date and time when the Customer noticed the issue.
`heardAt`	string	yes	Date and time when the Complaint reached the producer.
`outcome`	string or null	no	`upheld`, `rejected`, or `goodwill`.
`settlement`	string or null	no	`credit`, `replacement`, `collection`, or `none`.
`cost`	number or null	no	Cost associated with the Complaint.
`causeFound`	string or null	no	Business code of the Reason established by the investigation.
`settledAt`	string or null	no	Date and time when the Complaint was settled.

Update a complaint

PUT /manufacturing/food-beverage/v1/complaints/update

Updates an existing Complaint identified by its business code.

Request

PUT /manufacturing/food-beverage/v1/complaints/update
Content-Type: application/json

{
  "code": "CMP-2026-0413",
  "customer": "CUS001",
  "lot": "FG-260810-113",
  "product": "PRD001",
  "reason": "CMP-FOREIGN-BODY",
  "detail": "Blue plastic fragment about 4mm in the cup",
  "quantity": 6,
  "unit": "pcs",
  "severity": 4,
  "noticedAt": "2026-08-19T12:00:00+02:00",
  "heardAt": "2026-08-24T09:12:00+02:00",
  "outcome": "upheld",
  "settlement": "credit",
  "cost": 184.5,
  "causeFound": "CMP-FOREIGN-BODY",
  "settledAt": "2026-09-02T14:00:00+02:00"
}

Patch a complaint

PATCH /manufacturing/food-beverage/v1/complaints/patch

Partially updates an existing Complaint.

The Complaint is identified by properties.code. Fields omitted from properties keep their current values.

Nullable fields can be explicitly cleared by including them with a null value.

Request

PATCH /manufacturing/food-beverage/v1/complaints/patch
Content-Type: application/json

{
  "properties": {
    "code": "CMP-2026-0413",
    "outcome": "upheld",
    "settlement": "credit",
    "cost": 184.5,
    "causeFound": "CMP-FOREIGN-BODY",
    "settledAt": "2026-09-02T14:00:00+02:00"
  }
}

Parameters

Parameter	Type	Required	Description
`properties`	object	yes	Fields included in the partial update.
`properties.code`	string	yes	Business code of the Complaint to update.
`properties.customer`	string	no	New Customer business code.
`properties.lot`	string	no	New finished-Lot business code.
`properties.product`	string	no	New Product business code.
`properties.reason`	string	no	New reported Reason business code.
`properties.detail`	string or null	no	New detail, or `null` to clear it.
`properties.quantity`	number or null	no	New affected quantity, or `null` to clear it.
`properties.unit`	string or null	no	New quantity unit, or `null` to clear it.
`properties.severity`	integer or null	no	New severity, or `null` to clear it.
`properties.noticedAt`	string	no	New date and time when the issue was noticed.
`properties.heardAt`	string	no	New date and time when the Complaint was received.
`properties.outcome`	string or null	no	New investigation outcome, or `null` to clear it.
`properties.settlement`	string or null	no	New commercial settlement, or `null` to clear it.
`properties.cost`	number or null	no	New Complaint cost, or `null` to clear it.
`properties.causeFound`	string or null	no	New found-cause Reason code, or `null` to clear it.
`properties.settledAt`	string or null	no	New settlement timestamp, or `null` to reopen the Complaint.

Retrieve a complaint

GET /manufacturing/food-beverage/v1/complaints/select

Returns the Complaint identified by its business code.

Request

GET /manufacturing/food-beverage/v1/complaints/select?id=CMP-2026-0413

Parameters

Parameter	Type	Required	Description
`id`	string	yes	Business code of the Complaint to retrieve.

Example response

{
  "code": "CMP-2026-0413",
  "customer": "CUS001",
  "lot": "FG-260810-113",
  "product": "PRD001",
  "reason": "CMP-FOREIGN-BODY",
  "detail": "Blue plastic fragment about 4mm in the cup",
  "quantity": 6,
  "unit": "pcs",
  "severity": 4,
  "noticedAt": "2026-08-19T12:00:00+02:00",
  "heardAt": "2026-08-24T09:12:00+02:00",
  "outcome": "upheld",
  "settlement": "credit",
  "cost": 184.5,
  "causeFound": "CMP-FOREIGN-BODY",
  "settledAt": "2026-09-02T14:00:00+02:00"
}

List complaints

GET /manufacturing/food-beverage/v1/complaints/query

Returns Complaints matching the supplied filters.

Request

GET /manufacturing/food-beverage/v1/complaints/query?customers=CUS001&products=PRD001&reasons=CMP-FOREIGN-BODY

Query parameters

Parameter	Type	Required	Description
`codes`	string or array of strings	no	Limits results to the specified Complaint business codes.
`customers`	string or array of strings	no	Limits results to Complaints from the specified Customers.
`products`	string or array of strings	no	Limits results to Complaints for the specified Products.
`reasons`	string or array of strings	no	Limits results to Complaints with the specified reported Reasons.
`from`	string	no	Earliest `heardAt` timestamp to include.
`to`	string	no	Latest `heardAt` timestamp to include.

Multiple values can be supplied by repeating the query parameter:

GET /manufacturing/food-beverage/v1/complaints/query?products=PRD001&products=PRD002

Delete a complaint

DELETE /manufacturing/food-beverage/v1/complaints/delete

Deletes the Complaint identified by its business code.

Use this only when the Complaint record itself should not exist.

Request

DELETE /manufacturing/food-beverage/v1/complaints/delete?id=CMP-2026-0413

Parameters

Parameter	Type	Required	Description
`id`	string	yes	Business code of the Complaint to delete.
