Work order

Updated

Represents preventive or corrective maintenance work performed on equipment.

For example, replacing a worn seal after a machine failure or carrying out scheduled servicing can be recorded as a Work order.

A Work order records the equipment involved, the maintenance period, whether the work addressed a failure, and the associated reason.

The Work order object

{
  "code": "WO-8842",
  "equipment": "EQ010",
  "fixingFailure": true,
  "reason": "MNT-SEAL-WEAR",
  "plannedStart": "2026-08-23T06:00:00+02:00",
  "plannedEnd": "2026-08-23T09:00:00+02:00",
  "start": "2026-08-23T06:05:00+02:00",
  "end": "2026-08-23T08:40:00+02:00",
  "lineState": "planned-maintenance"
}

Fields

Field Type Description Example
code string Unique business code used to identify the Work order. "WO-8842"
equipment string Business code of the Machine or equipment component being maintained. "EQ010"
fixingFailure boolean true for corrective work that addresses an existing or imminent failure; otherwise false. true
reason string or null Optional registered Reason code or free-text explanation. When the value matches a registered Reason, Pulse keeps the reference to that Reason. Otherwise, the value is stored as free-text maintenance context. "MNT-SEAL-WEAR"
plannedStart string or null Optional planned start of the maintenance window. "2026-08-23T06:00:00+02:00"
plannedEnd string or null Optional planned end of the maintenance window. "2026-08-23T09:00:00+02:00"
start string Date and time when maintenance actually started, in ISO 8601 format. "2026-08-23T06:05:00+02:00"
end string or null Date and time when maintenance actually finished, or null while the Work order remains open. "2026-08-23T08:40:00+02:00"
lineState string or null Optional Line time condition to record for the owning Production line while this maintenance work is active. "planned-maintenance"

Important

code must be unique. Two Work orders cannot use the same code.

equipment must reference an existing Machine or equipment component.

Once created, a Work order cannot be changed from corrective to preventive or vice versa.

A Work order without end remains open. When end is supplied, the Work order is completed.

Corrective and preventive work

fixingFailure describes the nature of the maintenance work.

Value Meaning
true Corrective work that addresses an existing or imminent failure.
false Preventive work intended to avoid failure.

This is independent of whether the work was scheduled in advance.

For example:

{
  "fixingFailure": true,
  "plannedStart": "2026-08-23T06:00:00+02:00",
  "plannedEnd": "2026-08-23T09:00:00+02:00"
}

describes corrective work that was planned into a maintenance window.

Important

fixingFailure defines the maintenance kind when the Work order is created and cannot later be changed.

Planned and unplanned work

plannedStart and plannedEnd preserve the original planned maintenance window.

Both are optional and can be supplied independently.

For example, a complete planned window can be represented as:

{
  "plannedStart": "2026-08-23T06:00:00+02:00",
  "plannedEnd": "2026-08-23T09:00:00+02:00"
}

A Work order with neither value has no planned maintenance window recorded.

There is no separate planned or unplanned flag.

This keeps two different questions separate:

What kind of work was it?
→ fixingFailure

Was there a planned window?
→ plannedStart / plannedEnd

Equipment hierarchy

equipment can identify a Machine or one of its child equipment components.

Where possible, use the most specific maintained component.

For example:

Filler
└── Filling head
    └── Seal assembly

Using the most specific available equipment code makes maintenance history more closely reflect the asset that was actually worked on.

Work order and line time

A Work order describes the maintenance activity itself.

When lineState is supplied, Pulse also records the corresponding Line time interval for the Production line that owns the maintained equipment.

For example:

{
  "equipment": "EQ010",
  "reason": "MNT-SEAL-WEAR",
  "start": "2026-08-23T06:05:00+02:00",
  "end": "2026-08-23T08:40:00+02:00",
  "lineState": "planned-maintenance"
}

produces a Line time interval equivalent to:

{
  "line": "LINE001",
  "condition": "planned-maintenance",
  "reason": "MNT-SEAL-WEAR",
  "toldBy": "operator",
  "from": "2026-08-23T06:05:00+02:00",
  "to": "2026-08-23T08:40:00+02:00"
}

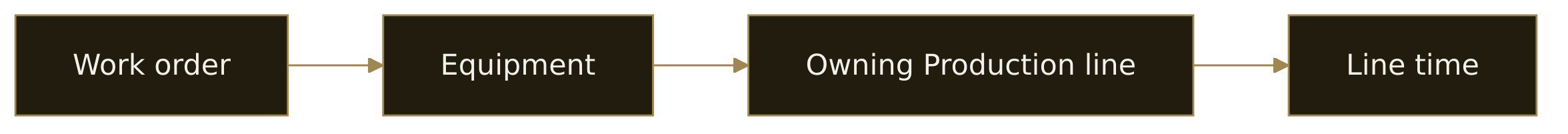

Pulse determines the Production line by following the equipment hierarchy until it reaches the owning line.

Diagram 1

Important

Do not submit a duplicate Line time interval separately when lineState is supplied on the Work order.

If lineState, equipment, or start changes, Pulse removes the previously generated interval and synchronizes the new one.

Clearing lineState removes the Line time interval created for the Work order.

Deleting the Work order also removes that generated Line time interval.

API resource

Resource Base path
Work order /manufacturing/food-beverage/v1/work-orders

API methods

Create a work order

POST /manufacturing/food-beverage/v1/work-orders/insert

Creates a maintenance Work order.

Request

POST /manufacturing/food-beverage/v1/work-orders/insert
Content-Type: application/json

{
  "code": "WO-8842",
  "equipment": "EQ010",
  "fixingFailure": true,
  "reason": "MNT-SEAL-WEAR",
  "plannedStart": "2026-08-23T06:00:00+02:00",
  "plannedEnd": "2026-08-23T09:00:00+02:00",
  "start": "2026-08-23T06:05:00+02:00",
  "end": "2026-08-23T08:40:00+02:00",
  "lineState": "planned-maintenance"
}

Parameters

Parameter Type Required Description
code string yes Unique business code of the Work order.
equipment string yes Business code of the maintained Machine or component.
fixingFailure boolean yes Whether the work is corrective (true) or preventive (false).
reason string or null no Registered Reason code or free-text explanation.
plannedStart string or null no Planned maintenance start.
plannedEnd string or null no Planned maintenance end.
start string yes Actual maintenance start.
end string or null no Actual maintenance end.
lineState string or null no Line time condition to create for the owning Production line.

Update a work order

PUT /manufacturing/food-beverage/v1/work-orders/update

Updates an existing Work order.

The Work order is identified by its code.

fixingFailure must remain the same as when the Work order was created.

Request

PUT /manufacturing/food-beverage/v1/work-orders/update
Content-Type: application/json

{
  "code": "WO-8842",
  "equipment": "EQ010",
  "fixingFailure": true,
  "reason": "MNT-SEAL-WEAR",
  "plannedStart": "2026-08-23T06:00:00+02:00",
  "plannedEnd": "2026-08-23T09:00:00+02:00",
  "start": "2026-08-23T06:05:00+02:00",
  "end": "2026-08-23T08:45:00+02:00",
  "lineState": "planned-maintenance"
}

Patch a work order

PATCH /manufacturing/food-beverage/v1/work-orders/patch

Partially updates an existing Work order.

The Work order is identified by properties.code. Fields omitted from properties keep their current values.

reason, plannedStart, plannedEnd, end, and lineState can be explicitly cleared by including them with a null value.

Request

PATCH /manufacturing/food-beverage/v1/work-orders/patch
Content-Type: application/json

{
  "properties": {
    "code": "WO-8842",
    "end": "2026-08-23T08:45:00+02:00"
  }
}

Parameters

Parameter Type Required Description
properties object yes Fields included in the partial update.
properties.code string yes Business code of the Work order to update.
properties.equipment string no New maintained equipment business code.
properties.fixingFailure boolean no Existing corrective/preventive value. It cannot be changed.
properties.reason string or null no New Reason or free-text explanation, or null to clear it.
properties.plannedStart string or null no New planned start, or null to clear it.
properties.plannedEnd string or null no New planned end, or null to clear it.
properties.start string no New actual maintenance start.
properties.end string or null no New actual end, or null to reopen the Work order.
properties.lineState string or null no New Line time condition, or null to remove the generated Line time interval.

Retrieve a work order

GET /manufacturing/food-beverage/v1/work-orders/select

Returns the Work order identified by its business code.

Request

GET /manufacturing/food-beverage/v1/work-orders/select?id=WO-8842

Parameters

Parameter Type Required Description
id string yes Business code of the Work order to retrieve.

Example response

{
  "code": "WO-8842",
  "equipment": "EQ010",
  "fixingFailure": true,
  "reason": "MNT-SEAL-WEAR",
  "plannedStart": "2026-08-23T06:00:00+02:00",
  "plannedEnd": "2026-08-23T09:00:00+02:00",
  "start": "2026-08-23T06:05:00+02:00",
  "end": "2026-08-23T08:40:00+02:00",
  "lineState": "planned-maintenance"
}

List work orders

GET /manufacturing/food-beverage/v1/work-orders/query

Returns Work orders matching the supplied filters.

Request

GET /manufacturing/food-beverage/v1/work-orders/query?equipment=EQ010&fixingFailure=true

Query parameters

Parameter Type Required Description
codes string or array of strings no Limits results to the specified Work order business codes.
equipment string or array of strings no Limits results to Work orders for the specified equipment codes.
fixingFailure boolean no true returns corrective Work orders; false returns preventive Work orders.
from string no Limits results to Work orders starting at or after the specified date and time.
to string no Limits results to Work orders starting at or before the specified date and time.

Multiple equipment values can be supplied by repeating the query parameter:

GET /manufacturing/food-beverage/v1/work-orders/query?equipment=EQ010&equipment=EQ011

Delete a work order

DELETE /manufacturing/food-beverage/v1/work-orders/delete

Deletes the Work order identified by its business code.

Deleting a Work order also removes its associated maintenance plan and any Line time interval generated through lineState.

Important

A Machine referenced by an existing Work order cannot be deleted while the Work order still references it.

A registered Reason referenced by a Work order is also protected from deletion.

Request

DELETE /manufacturing/food-beverage/v1/work-orders/delete?id=WO-8842

Parameters

Parameter Type Required Description
id string yes Business code of the Work order to delete.
