Event

Records a discrete operational occurrence during production.

For example, if a production line stops unexpectedly, a batch exceeds a specification limit, or a quantity of product is rejected, the occurrence can be recorded as an event.

Events are used for stoppages, waste, specification deviations, critical control point (CCP) deviations, changeovers, complaints, and similar production occurrences.

The Event object

{
  "type": "stoppage",
  "line": "LINE001",
  "run": "L01-260810-002",
  "reason": "DTCU010",
  "severity": 2,
  "at": "2026-08-11T03:40:00+02:00",
  "end": "2026-08-11T04:05:00+02:00"
}

Fields

Event types

Supported values for type are:

Type	Meaning
stoppage	A countable production interruption.
waste	A discrete waste occurrence.
spec-deviation	A deviation from a declared Product or process specification.
ccp-deviation	A deviation at a critical control point.
changeover	A discrete production changeover occurrence.
complaint	A complaint occurrence.

Other Event type codes are not accepted by the Food & Beverage facade.

Run and batch context

Use run when the Event belongs to line production:

{
  "type": "waste",
  "line": "LINE001",
  "run": "L01-260810-002",
  "at": "2026-08-11T01:20:00+02:00"
}

Use batch when the Event belongs to bulk processing:

{
  "type": "waste",
  "line": "LINE001",
  "batch": "BULK-260810-07",
  "at": "2026-08-10T19:20:00+02:00"
}

An Event may also omit both when it belongs to the Production line without a specific Run or Batch context.

Instant and interval events

An Event may happen at a single moment:

{
  "type": "spec-deviation",
  "line": "LINE001",
  "run": "L01-260810-002",
  "at": "2026-08-11T02:15:00+02:00"
}

Or it may remain open for a period of time:

{
  "type": "stoppage",
  "line": "LINE001",
  "run": "L01-260810-002",
  "reason": "DTCU010",
  "at": "2026-08-11T03:40:00+02:00",
  "end": "2026-08-11T04:05:00+02:00"
}

end = null    → open
end supplied  → closed

Use end when the occurrence has a meaningful duration.

Event identity and corrections

An Event is identified by:

type + line + at

For example:

stoppage / LINE001 / 2026-08-11T03:40:00+02:00

Submitting insert again with the same type, line, and at does not create a second Event. Pulse updates the existing Event with the submitted values.

This allows source systems to resend or correct an occurrence without creating a duplicate.

Events and line time

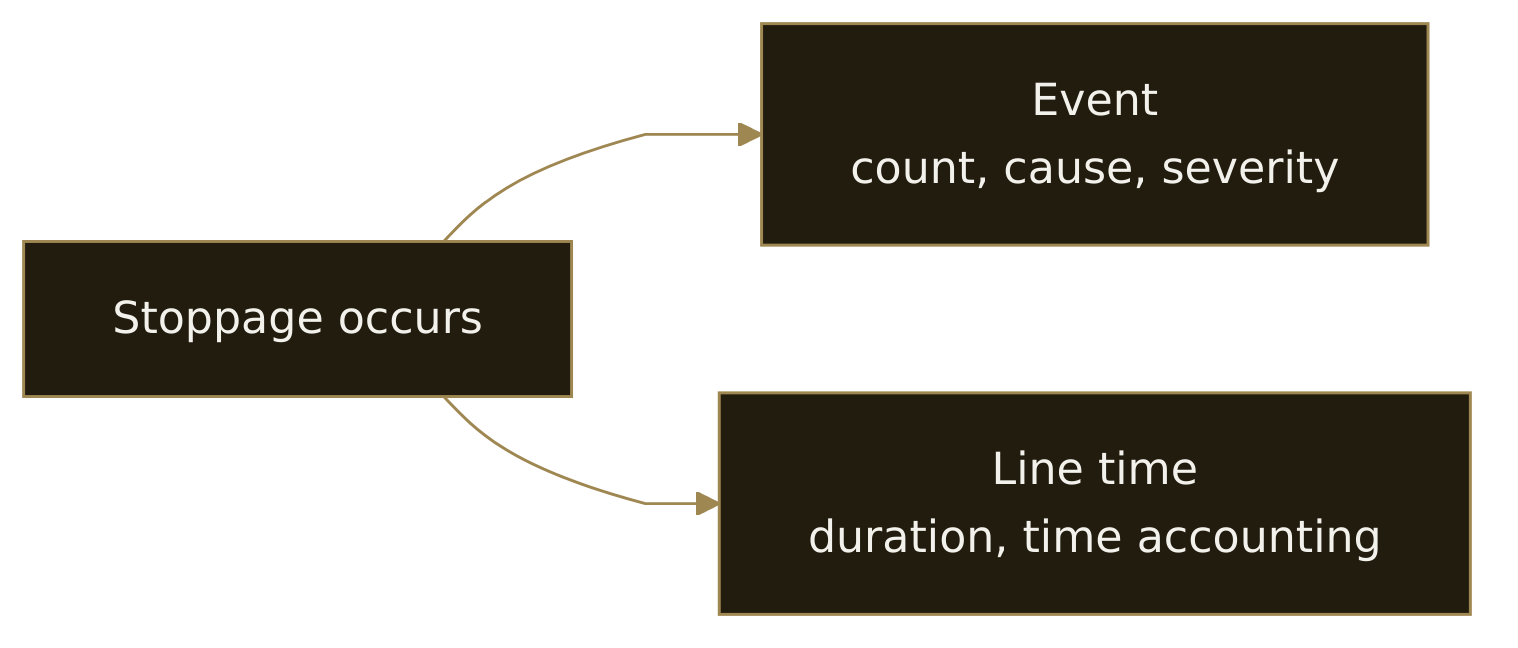

A stoppage can appear both as an Event and as Line time.

These resources describe different aspects of the same occurrence:

The Event records that the stoppage happened and can provide its cause and severity.

Line time records how much Production-line time the stoppage consumed.

The two records are complementary: Event makes the occurrence countable and attributable, while Line time contributes to complete production-time accounting.

API resource

Resource	Base path
Event	/manufacturing/food-beverage/v1/events

API methods

Submit an event

POST /manufacturing/food-beverage/v1/events/insert

Records one operational Event.

If an Event with the same type, line, and at already exists, the existing Event is updated.

Request

POST /manufacturing/food-beverage/v1/events/insert
Content-Type: application/json

{
  "type": "stoppage",
  "line": "LINE001",
  "run": "L01-260810-002",
  "reason": "DTCU010",
  "severity": 2,
  "at": "2026-08-11T03:40:00+02:00",
  "end": "2026-08-11T04:05:00+02:00"
}

Parameters

Parameter	Type	Required	Description
type	string	yes	Event type.
line	string	yes	Business code of the Production line.
run	string or null	no	Business code of the associated Run.
batch	string or null	no	Business code of the associated Batch.
reason	string or null	no	Business code of the associated Reason.
severity	integer or null	no	Severity from 1 to 5.
at	string	yes	Date and time when the Event occurred or started.
end	string or null	no	Date and time when the Event ended.

Update an event

PUT /manufacturing/food-beverage/v1/events/update

Updates the Event identified by type, line, and at.

Request

PUT /manufacturing/food-beverage/v1/events/update
Content-Type: application/json

{
  "type": "stoppage",
  "line": "LINE001",
  "run": "L01-260810-002",
  "batch": null,
  "reason": "DTCU010",
  "severity": 3,
  "at": "2026-08-11T03:40:00+02:00",
  "end": "2026-08-11T04:10:00+02:00"
}

Patch an event

PATCH /manufacturing/food-beverage/v1/events/patch

Partially updates an existing Event.

The Event is identified by properties.type, properties.line, and properties.at. All three are required.

run, batch, reason, severity, and end can be explicitly cleared by including them with a null value.

Request

PATCH /manufacturing/food-beverage/v1/events/patch
Content-Type: application/json

{
  "properties": {
    "type": "stoppage",
    "line": "LINE001",
    "at": "2026-08-11T03:40:00+02:00",
    "end": "2026-08-11T04:10:00+02:00",
    "severity": 3
  }
}

Parameters

Parameter	Type	Required	Description
properties	object	yes	Fields included in the partial update.
properties.type	string	yes	Event type identifying the Event.
properties.line	string	yes	Production-line business code identifying the Event.
properties.at	string	yes	Event timestamp identifying the Event.
properties.run	string or null	no	New Run business code, or null to clear it.
properties.batch	string or null	no	New Batch business code, or null to clear it.
properties.reason	string or null	no	New Reason business code, or null to clear it.
properties.severity	integer or null	no	New severity, or null to clear it.
properties.end	string or null	no	New Event end time, or null to leave the Event open.

Retrieve an event

GET /manufacturing/food-beverage/v1/events/select

Returns the Event identified by its composite business key.

Request

GET /manufacturing/food-beverage/v1/events/select?type=stoppage&line=LINE001&at=2026-08-11T03:40:00%2B02:00

Query parameters

Parameter	Type	Required	Description
type	string	yes	Event type.
line	string	yes	Business code of the Production line.
at	string	yes	Event timestamp.

List events

GET /manufacturing/food-beverage/v1/events/query

Returns Events matching the supplied filters.

Request

GET /manufacturing/food-beverage/v1/events/query?types=stoppage&lines=LINE001&open=true

Query parameters

Parameter	Type	Required	Description
types	string or array of strings	no	Limits results to the specified Event types.
lines	string or array of strings	no	Limits results to Events on the specified Production lines.
runs	string or array of strings	no	Limits results to Events associated with the specified Runs.
batches	string or array of strings	no	Limits results to Events associated with the specified Batches.
reasons	string or array of strings	no	Limits results to Events associated with the specified Reasons.
severities	integer or array of integers	no	Limits results to the specified severity values.
from	string	no	Limits results to Events at or after the specified boundary.
to	string	no	Limits results to Events at or before the specified boundary.
open	boolean	no	true returns open Events; false returns closed Events.

Multiple values can be supplied by repeating the query parameter:

GET /manufacturing/food-beverage/v1/events/query?types=stoppage&types=waste

Delete an event

DELETE /manufacturing/food-beverage/v1/events/delete

Deletes the Event identified by its composite business key.

Request

DELETE /manufacturing/food-beverage/v1/events/delete?type=stoppage&line=LINE001&at=2026-08-11T03:40:00%2B02:00

Query parameters

Parameter	Type	Required	Description
type	string	yes	Event type.
line	string	yes	Business code of the Production line.
at	string	yes	Event timestamp.
